WiiM Pro Plus Streamer
Pro Plus quality sound and convenience
Using premium grade electronics, the WiiM Pro Plus delivers a significant upgrade in sound over the standard Pro model. It’s also feature-packed and easy to add to your system. Simply plug the device into an AUX socket, pair the device with your smartphone or tablet and begin streaming in less than a couple of minutes.
Premium quality DAC for enhanced sound
With a DAC (Digital to Analogue Convertor) upgrade to a reference quality, AKM 4493SEQ, the WiiM Pro Plus takes a leap forward in sound quality. The sound is much more dynamic, meaning that you hear more detail in both softer and louder sections of music. There’s less background noise and distortion, giving a purer and more lifelike sound.
Higher quality analogue input
It’s not just the output quality that’s been improved, the Pro Plus also advances to the next level of ADC (Analogue to Digital Convertor). This means that the sources you plug into the device, such as a TV, games console or CD player sound better than ever, when played through the Pro Plus.
Technical Specifications
| Dimensions | 140mm x 42mm x 140mm |
| Audio Input | 1 x Analog RCA Line input 2 Vrms 192 kHz/24-bit SNR 106dB 1 x SPDIF in Optical, up to 192kHz/24-bit |
| Analog Audio Output | 1 x Analog RCA Line output, 1 x Digital optical (SPDIF) output, 1 x Digital Coaxial output, up to 768kHz/32-bit DSD512 |
| Internal DAC IC | AKM4493SEQ |
| SNR (built-in DAC) | 120dB |
| THD+N (built-in DAC) | 0.00032% (-110dB) |
| Network | 802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi |
| Bluetooth | Bluetooth 5.1 |
| Digital Audio Output | Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output. |
| Audio Codec | MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Protocol | AirPlay 2, Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon |
| Streaming Services in App | Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, etc. |
| Power Input | USB Type-C, requires 5V, 1.5A or higher Bundled adapter: 5V, 2A |
| LED | Three color status LED — Red, Green and White |
| Button | Capacitive touch buttons – Play/Pause, Volume +, Volume -, 1 x Preset |

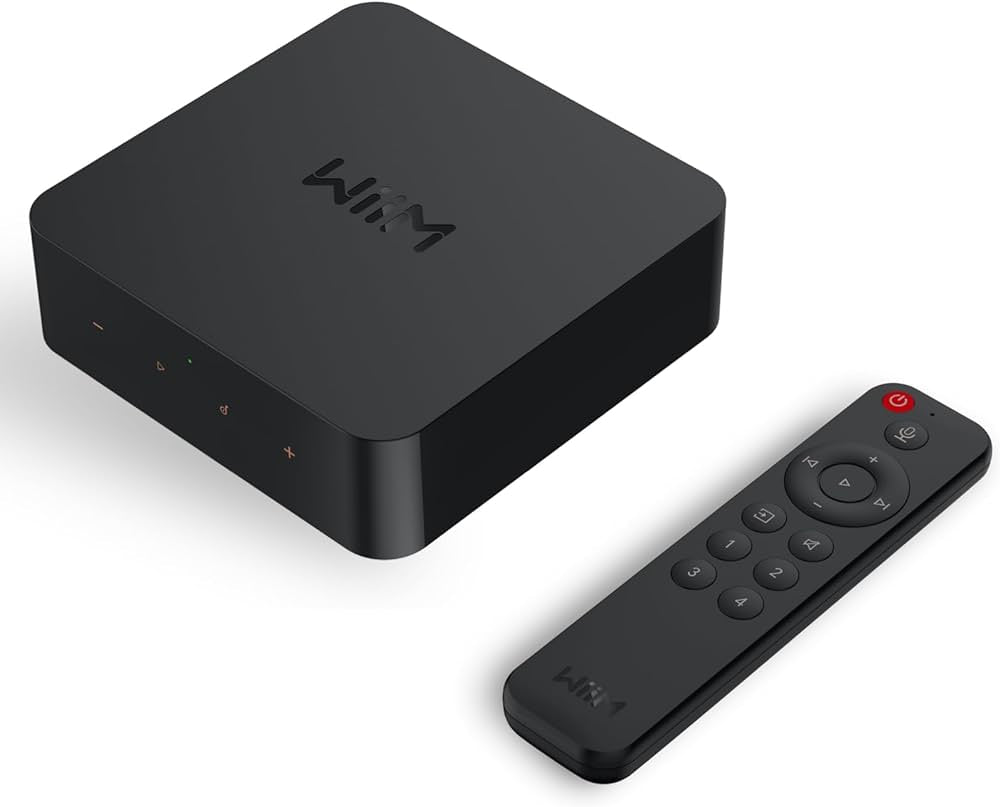

| Accessory | WiiM Voice Remote Premium RCA Cable for Line Out |
