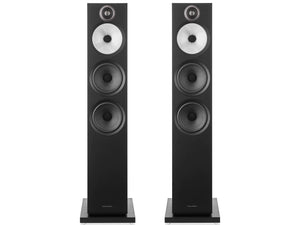

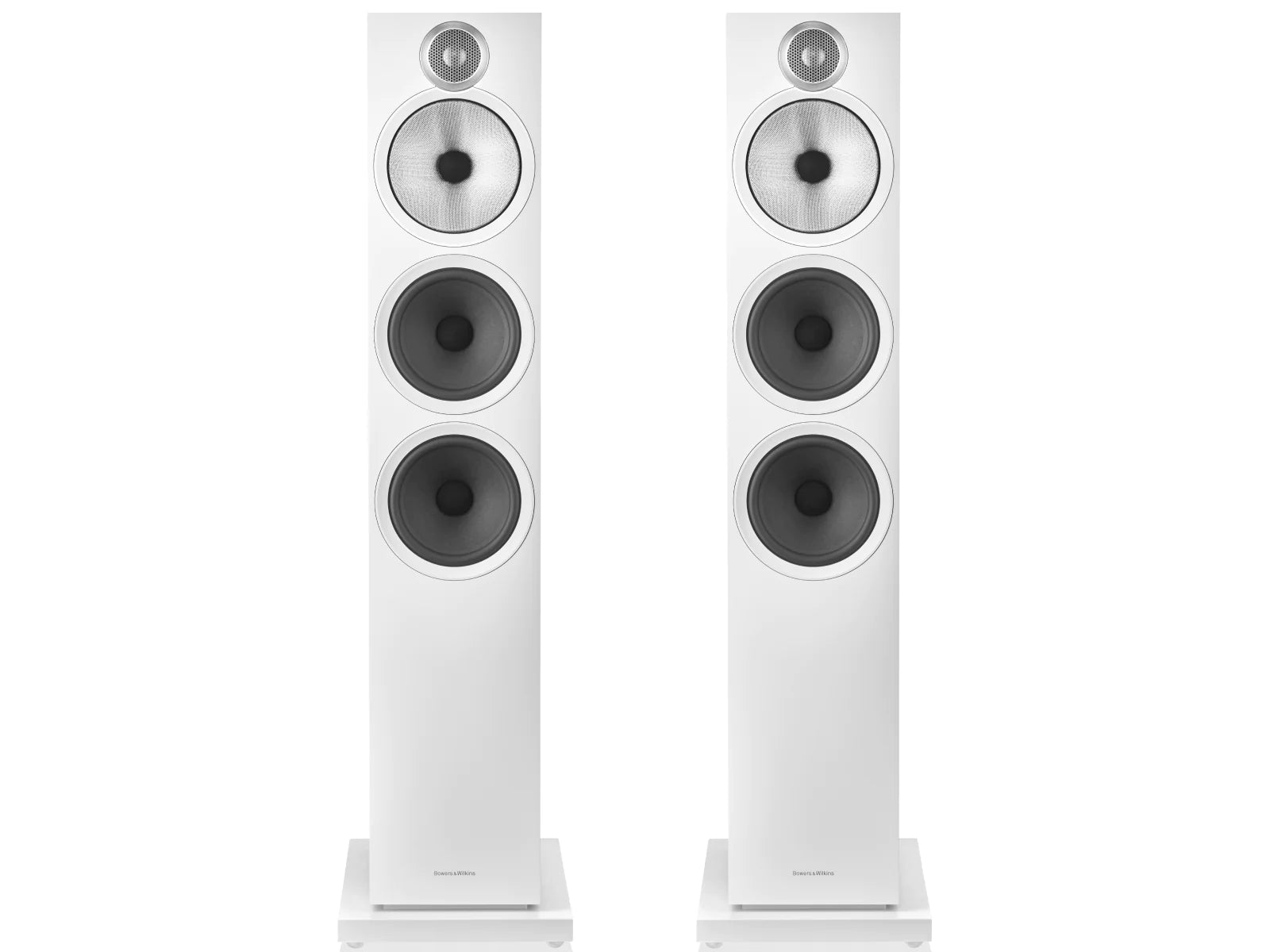

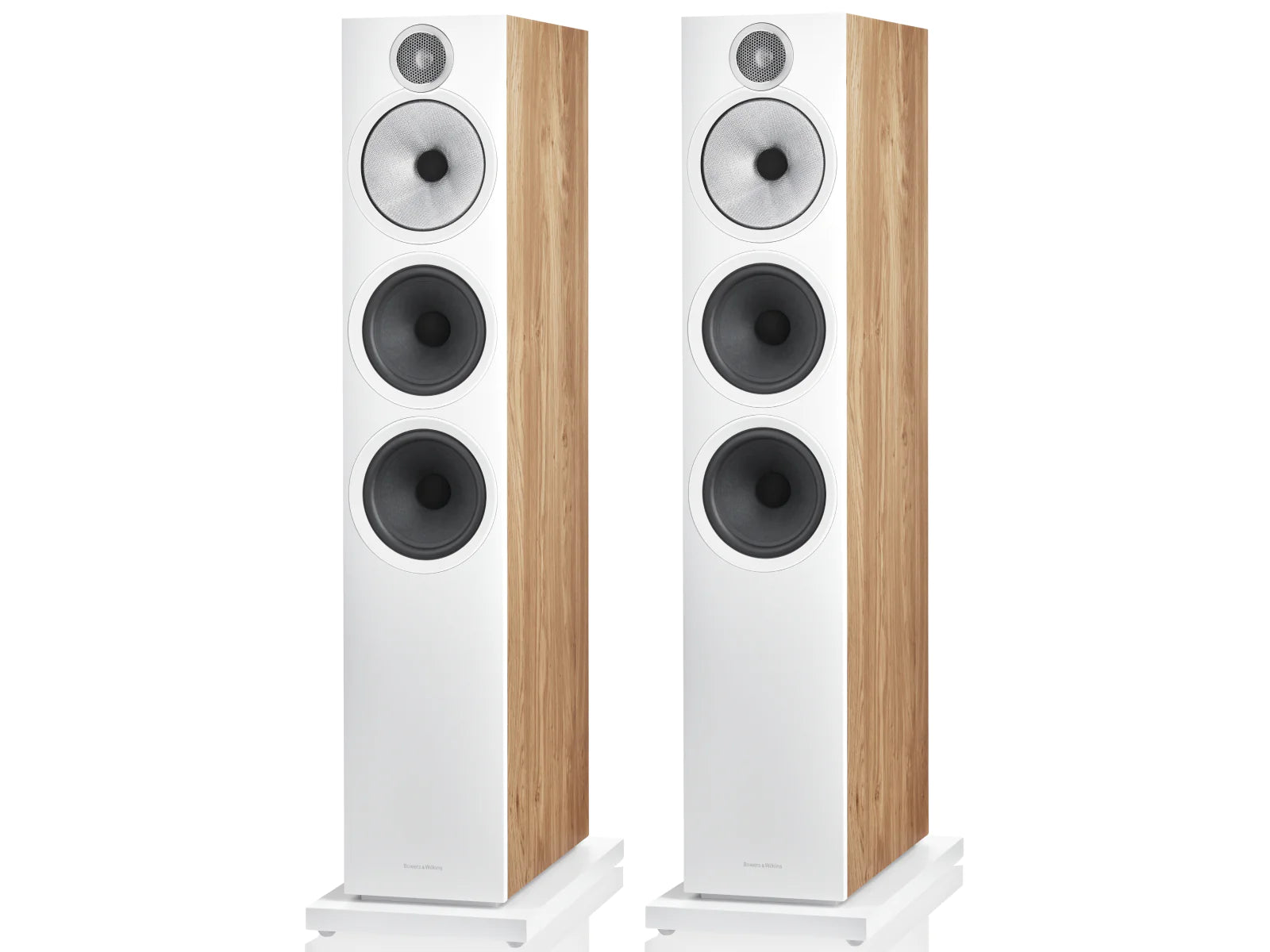

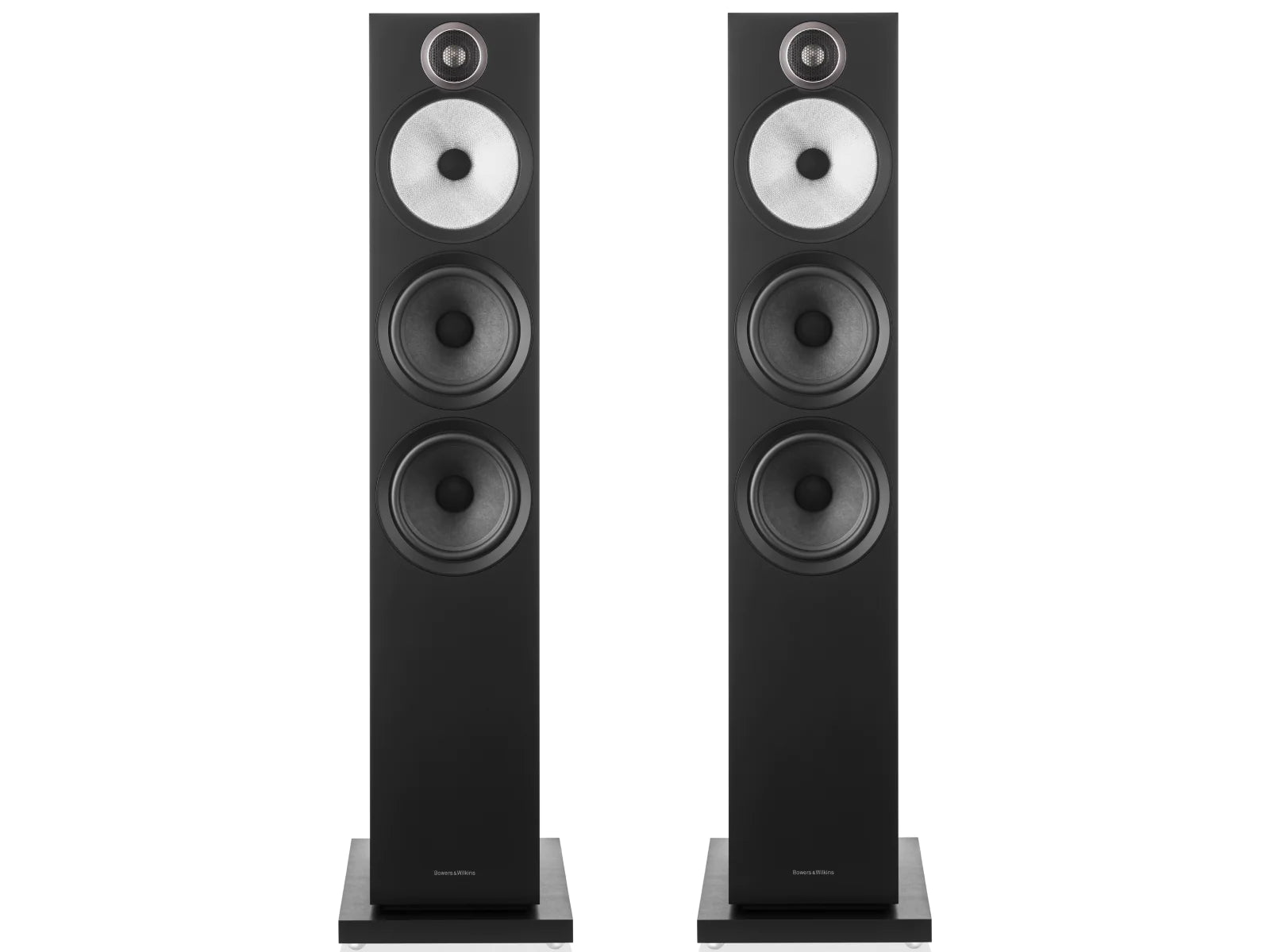

B&W 603 S3 Speakers
The Bowers & Wilkins 603 S3 is the largest loudspeaker in the 600 Series and is ideal for larger rooms and home theatres. It combines their new Titanium Dome™ tweeter—which offers both clarity of sound, as well as excellent high frequency dispersion—with Continuum cone technology for a truly audiophile experience.
Layered, beautiful details
The 603 S3's new Titanium Dome tweeter delivers smooth and refined high-frequency reproduction, providing an accurate and immersive insight into your favourite music. 603 S3 boasts a new design that dramatically improves the materials used in its tweeter grille mesh, first developed for our revered Signature models. The Titanium Dome tweeters provide exceptional resolution and realism.
Precision and transparency
The Continuum cone avoids the abrupt vocal transitions that can impair conventional drive units. With 603 S3, experience a more open and neutral performance—voices are delivered with precision and transparency.
Upgraded Performance

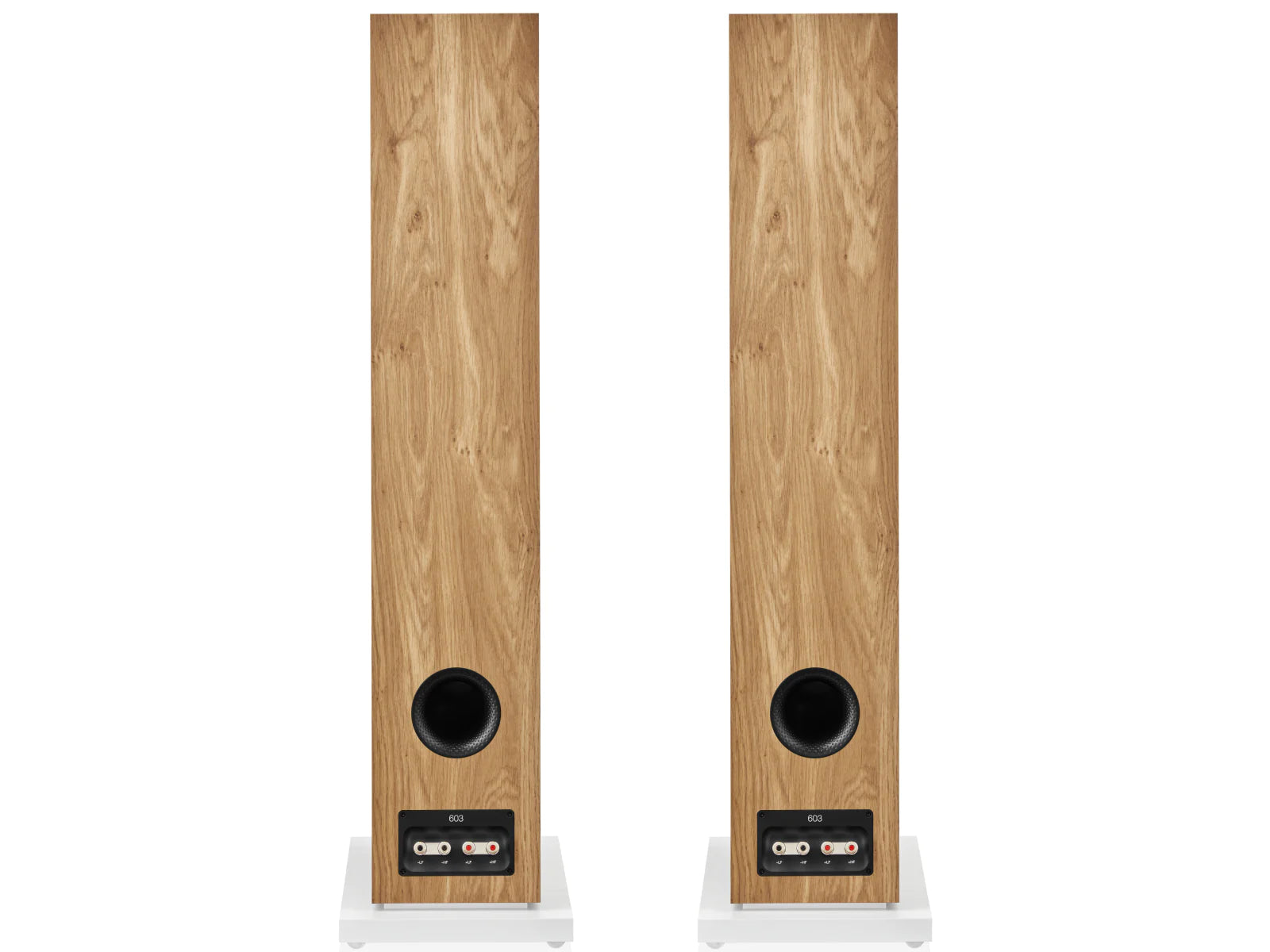

Based on the set of speaker terminals we introduced in our 700 Series, the new 603 S3's improved design offers a cleaner signal-path between your amplifier and loudspeakers.
Technical Specifications
Dimensions | Height: 985 mm (38.8 in) cabinet only 1,020 mm (40.2 in) including plinth Width: 190 mm (7.5 in) cabinet only 260 mm (10.2 in) including plinth Depth: 340 mm (13.4 in) cabinet only 368 mm (14.5 in) including grille and terminals 402 mm (15.8 in) including plinth |
Net weight | 27.5kg (60.6 lb) |
Technical details
Technical features | Decoupled Double Dome Titanium tweeter Continuum™ cone FST™ midrange Paper bass cones Flowport™ |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1 in) Titanium Dome high-frequency 1x ø150mm (6 in) Continuum cone FST midrange 2x ø165mm (6.5 in) Paper bass cone |
Frequency range | -6dB 29Hz - 33kHz |
Frequency response (+/-3dB from reference axis) | 46Hz - 28kHz ±3dB |
Sensitivity (on axis at 2.83Vrms at 1m) | 90dB |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 350Hz - 12kHz |
Nominal impedance | 8Ω (minimum 3.0Ω) |
Recommended amplifier power | 30W - 200W into 8Ω on unclipped programme |
Max recommended cable impedance | 0.1Ω |
